Export standard 304L stainless steel wire mesh
1.Product specification
| Name | Export standard 304L stainless steel wire mesh |
| Materials | ss200/300/400serie |
| wire diameter | 0.02-5mm |
| Band name | FD |
| Store | In store |
| Features | 1.excellent resistance against acid, alkali, heat and corrosion
2.high strength, long service life, easy to use
3.resistant to acid, alkali, temperature, abrasion etc. |
| Applications | 1.Widely used in petroleum, chemical, mine, foodstuff, pharmacy, printing,etc.
2.sorting and screening of solid, liquid and gas in mine, metallurgy, airspace. |
| Sample | available |
Stainless Steel Wire Specification(Plain Weave)
| Stainless Steel Wire Specification(Plain Weave) |
| Mesh | Wire Diameter(mm) | Opening(mm) | Material(Alsl) |
| 7 | 1 | 2.63 | 304 or 316 |
| 10 | 0.6 | 0.94 | 304 or 316 |
| 12 | 0.5 | 1.62 | 304 or 316 |
| 16 | 0.4 | 1.09 | 304 or 316 |
| 16 | 0.35 | 1.24 | 304 or 316 |
| 18 | 0.35 | 1.06 | 304 or 316 |
| 20 | 0.4 | 0.87 | 304 or 316 |
| 24 | 0.26 | 0.8 | 304 or 316 |
| 30 | 0.3 | 0.55 | 304 or 316 |
| 35 | 0.17 | 0.56 | 304 or 316 |
| 40 | 0.23 | 0.4 | 304 or 316 |
| 50 | 0.2 | 0.31 | 304 or 316 |
| 60 | 0.15 | 0.27 | 304 or 316 |
| 70 | 0.12 | 0.24 | 304 or 316 |
Stainless Steel Wire Specification(Dutch Weave)
| Stainless Steel Wire Specification(Dutch Weave) |
| Mesh | Wire Diameter (mm) | Material(Alsl) |
| 12*64 | 0.058*0.04 | 304 or 316 |
| 24*110 | 0.36*0.25 | 304 or 316 |
| 14*88 | 0.5*0.33 | 304 or 316 |
| 30*150 | 0.23*0.18 | 304 or 316 |
| 40*200 | 0.18*0.13 | 304 or 316 |
| 50*250 | 0.14*0.11 | 304 or 316 |
| 80*700 | 0.1*0.08 | 304 or 316 |
| 165*800 | 0.071*0.04 | 304 or 316 |
| 165*1400 | 0.06*0.04 | 304 or 316 |
| 200*1800 | 0.05*0.032 | 304 or 316 |
| 325*2300 | 0.035*0.025 | 304 or 316 |
| 400*2800 | 0.03*0.02 | 304 or 316 |
2.Product applications
1.Widely used in petroleum, chemical, mine, foodstuff, pharmacy, printing,etc.
2.sorting and screening of solid, liquid and gas in mine, metallurgy, airspace.

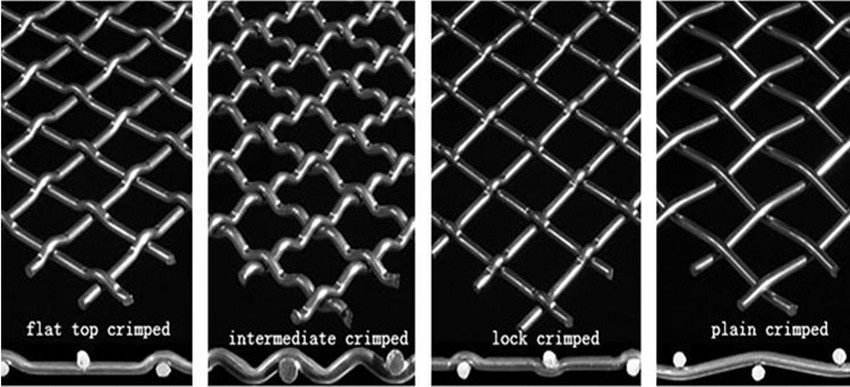

3.Stainless steel crimped wire mesh could be used in many fields, such as in mine, coal factory, construction and other industries. Some of the stainless steel crimped wire mesh could also be used for roasting flour food and meat.
3.Product characteristics
1,Economy. It only needs to load stone and then to be sealed.
2,Construction is simple, without special skills.
3,A strong withstand natural damage and corrosion resistance.
4,Withstand large-scale deformation, and does not collapse.
5,Cage rock crevice between the mud will be melted together by the surrounding natural environment.
6,Has good permeability to prevent the damage by hydrostatic.
7,Save transportation costs.It can be folded up for its transport.
4.Packaging & Shipping
- LCL: packed with plastic film then on the pallets
- FCL: Nude packing
- Other special package according to customers' requirements.
- Loading quantity: 130sets per 20ft container, 280sets per 40ft HQ.
- Delivery time: Within 15-30days after receipt of advanced paymen
5.Company information
Anping Fangda Metal Wire Mesh Co., Ltd was found in 2007.
we are located in Anping,Hebei--"the Base of Wire Mesh Products", which is close to Beijingand Tianjin port..We
specialize in designing, manufacturingand exporting of
various types of metal wire mesh which include wire
fence,chain link fence,stainless steel wire mesh,chicken
cage,welded wire mesh, razor barbed wire, etc to many
countries and regions in Europe, America,South America,
Africa,Middle East,and Australia.
